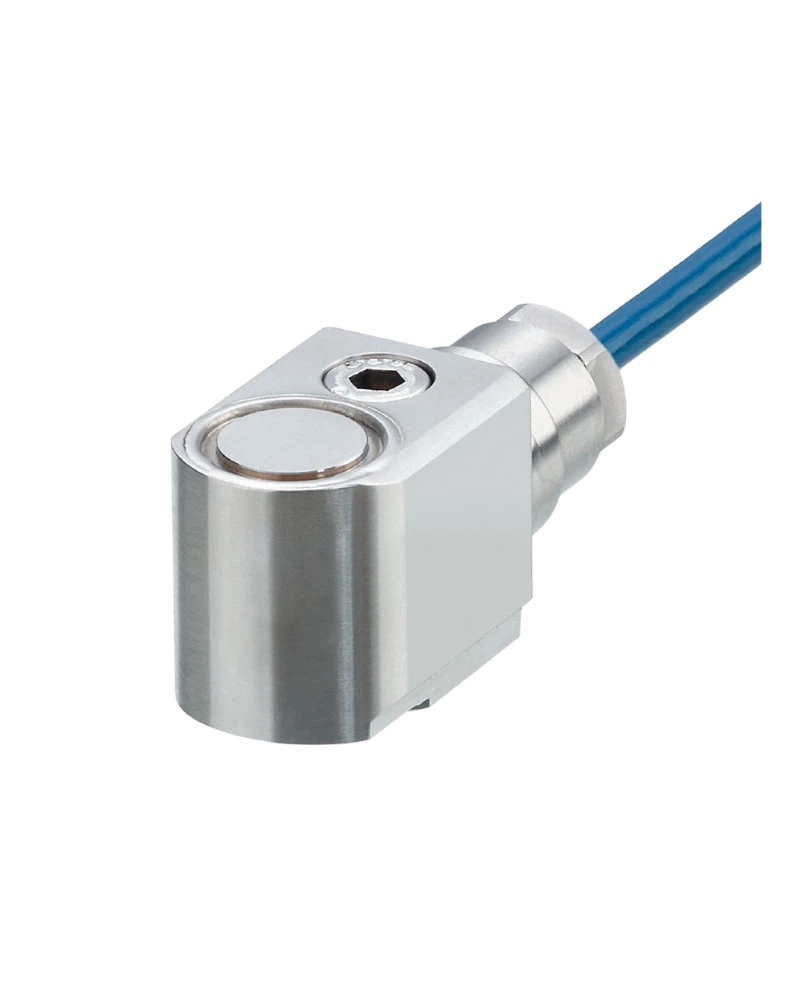

VSP01A is an ATEX-certified piezoelectric acceleration sensor for hazardous areas. It provides a -50…50 g vibration range and 2…10000 Hz frequency range. The sensor uses IEPE communication through intrinsically safe supply equipment. Its stainless-steel housing supports harsh industrial environments. The design is suitable for connection to external VSExxx diagnostic electronics.
VSP01A is designed for hazardous-area vibration monitoring. Its ATEX and IECEx certifications support use in specified explosive atmospheres. The sensor uses intrinsically safe supply isolators. A single measurement axis provides focused vibration measurement. This makes it suitable for critical rotating equipment in hazardous locations.
The sensor measures vibration from -50 to +50 g. Its frequency range extends from 2 to 10000 Hz. Sensitivity is 100 mV/g with 0.1 mg noise density. The piezoelectric principle provides dynamic vibration measurement. IEPE communication connects the sensor to external diagnostic equipment.
VSP01A uses a stainless-steel housing. IP68 protection supports harsh environmental conditions. The sensor can operate between -55 and +90 °C. It withstands 5000 g shock. M8 × 1.25 mounting provides secure machine installation.
ATEX-certified sensor
IECEx-certified sensor
Piezoelectric technology
Single measurement axis
-50…50 g range
2…10000 Hz
100 mV/g sensitivity
0.1 mg noise density
5% transverse sensitivity
IEPE interface
10…12 V DC
0.5…8 mA current
100 MΩ insulation
Reverse polarity protection
IP68 protection
M8 × 1.25 mounting
Stainless-steel housing
5000 g shock resistance
10 m PUR cable
Intrinsically safe connection
Hazardous-area machinery
Oil and gas equipment
Chemical machinery
Petrochemical equipment
Explosion-risk machinery
Pump monitoring
Motor monitoring
Gearbox monitoring
Bearing monitoring
Condition monitoring
| Specification | VSP01A |
|---|---|
| Product type | ATEX acceleration sensor |
| Model | VSP01A |
| Technology | Piezoelectric |
| Measurement axes | 1 |
| Vibration range | -50…50 g |
| Frequency range | 2…10000 Hz |
| Sensitivity | 100 mV/g |
| Noise density | 0.1 mg |
| Transverse sensitivity | ≤5% |
| Minimum measuring time | 2 s |
| Operating voltage | 10…12 V DC |
| Current consumption | 0.5…8 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Maximum load | 200 Ω |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Interface | IEPE |
| Mounting | M8 × 1.25 |
| Dimensions | 30 × 25.5 × 64.7 mm |
| Housing | Stainless steel |
| Tightening torque | 8 Nm |
| Cable | 10 m PUR |
| Ambient temperature | -55…90 °C |
| Storage temperature | -55…90 °C |
| Protection rating | IP68 |
| Water resistance | Up to 100 m / 10 bar |
| Shock resistance | 5000 g |
| ATEX approval | Baseefa12ATEX0248X |
| IECEx approval | IECEx BAS 12.0133 X |
| ATEX category | Ex ia IIC / Ex ia IIIC |
| Pack quantity | 1 |
