The nominal sensing distance is 800 mm.
The nominal sensing distance is 800 mm. A switching frequency of 5 Hz.
The thermal drift Sr is ≤2%, with repeat accuracy of 0,50%.
The operating voltage is 10 - 30 VDC, with load current of 100 mA. No-load supply current is ≤35 mA @Val = 30V and leakage current is limited to 10 µA @ 30Vcc.
Maximum ripple is 5%. Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
Dimensions are M18 x 1 / L = 46,4 mm and the connection is 2 m PVC Cable. Weight is 75 g.
Tightening torque is 1 nm.
The operating temperature range is - 20 °C…+ 70 °C.
Storage temperature is - 35 °C…+ 80° C Non-freezing.

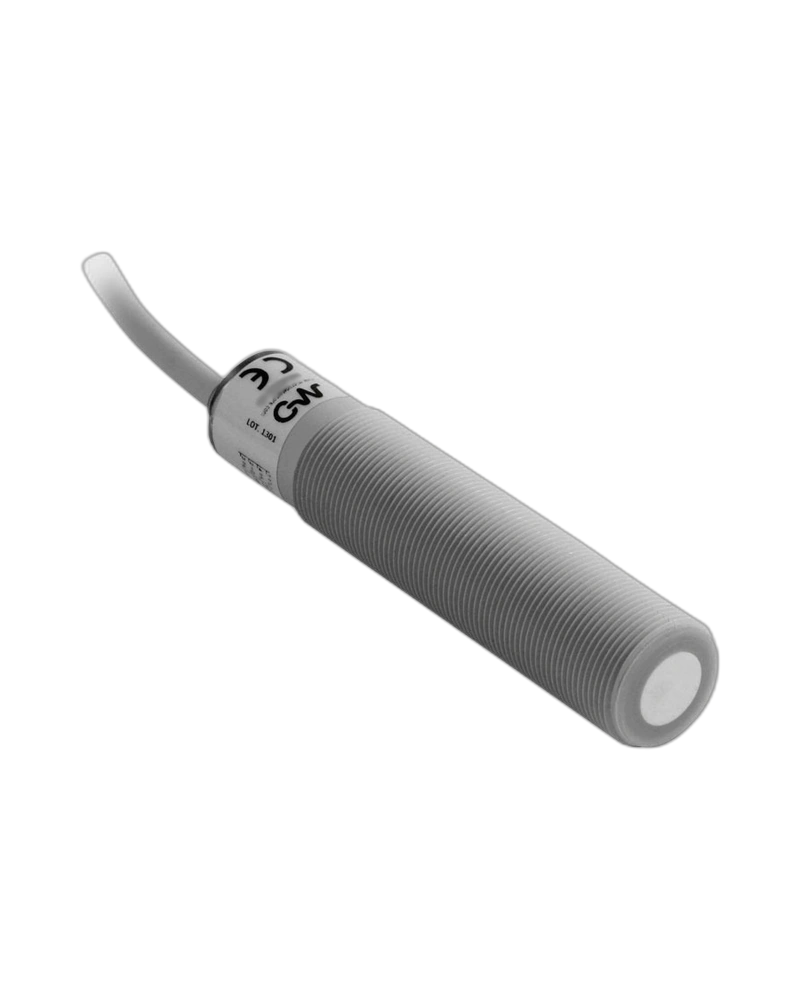

The manufacturer part number is UK6C/H1-0AUL. This model is manufactured by M.D. Micro Detectors. Response time is 500 ms.
Time to availability is ≤300 ms.
For electrical integration, it provides operating voltage 10 - 30 VDC, switching frequency 5 Hz. The physical configuration includes dimensions M18 x 1 / L = 46,4 mm, 2 m PVC Cable connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 70 °C.
| Specification | Details |
|---|---|
| Model | UK6C/H1-0AUL |
| Manufacturer part number | UK6C/H1-0AUL |
| Manufacturer | M.D. Micro Detectors |
| Response time | 500 ms |
| Switching frequency | 5 Hz |
| Weight | 75 g |
| Tightening torque | 1 nm |
| Operating temperature | - 20 °C…+ 70 °C |
| Dimensions | M18 x 1 / L = 46,4 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | - 35 °C…+ 80° C Non-freezing |
| Hysteresis | 1% |
| Nominal sensing distance | 800 mm |
| Thermal drift Sr | ≤2% |
| Repeat accuracy | 0,50% |
| Degree of protection | IP67 |
| Time to availability | ≤300 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5% |
| Operating voltage | 10 - 30 VDC |
| Load current | 100 mA |
| No-load supply current | ≤35 mA @Val = 30V |
| Leakage current | 10 µA @ 30Vcc |
