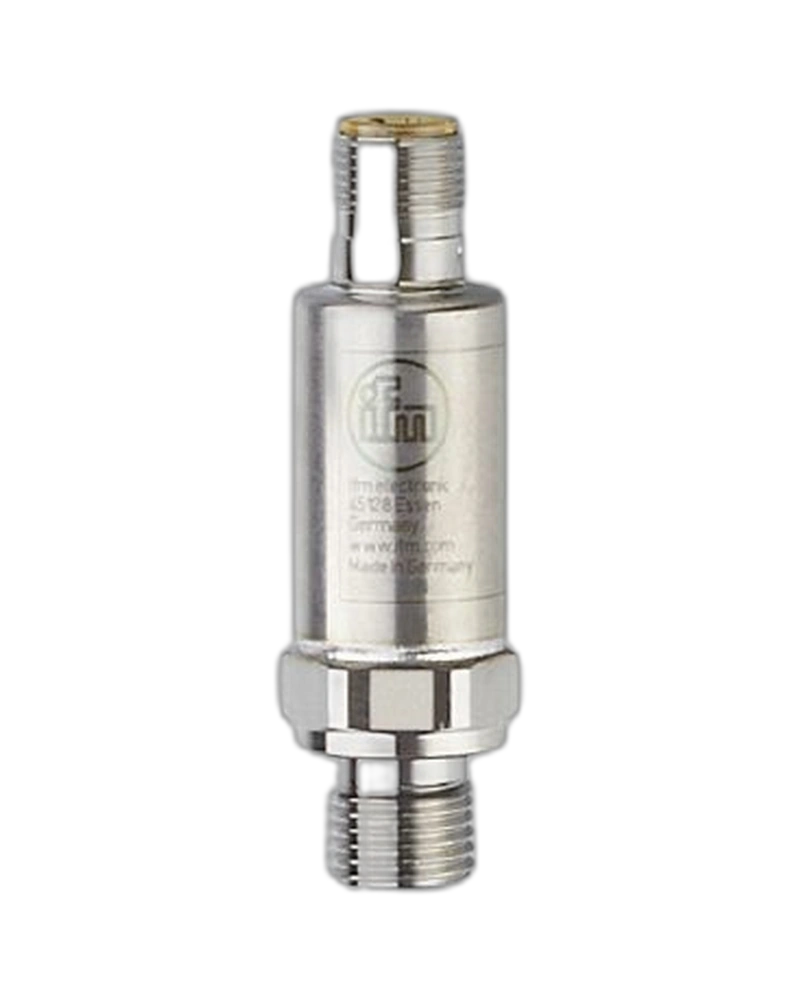

The IFM PT5400 is an industrial pressure transmitter designed for reliable pressure measurement up to 400 bar. It provides a continuous 4–20 mA analogue output for automation and monitoring systems. Its compact stainless-steel housing offers high resistance to shock and vibration. The transmitter is designed for liquids and gases and supports demanding industrial installations. A G 1/4 process connection and M12 connector simplify integration into pressure-monitoring systems.
The PT5400 provides relative pressure measurement from 0 to 400 bar. It is suitable for industrial pressure monitoring and hydraulic applications. Excellent repeatability supports stable pressure measurement. Its low linearity and hysteresis errors contribute to reliable signal quality. A fast 1 ms response supports dynamic machine pressure monitoring.
The compact stainless-steel housing provides mechanical durability. High shock and vibration resistance makes the transmitter suitable for machinery. The G 1/4 external process connection enables straightforward installation. IP67/IP69K protection supports use in harsh environments. The compact cylindrical design is useful where installation space is limited.
The PT5400 provides a 4–20 mA analogue output for PLC and control-system integration. The 8.5–36 V DC operating range suits industrial automation power supplies. Reverse polarity and short-circuit protection improve electrical safety. The M12 connector simplifies field wiring. Fast response provides effective real-time pressure monitoring.
0...400 bar measuring range
4...20 mA output
Stainless-steel housing
G 1/4 process connection
M12 connector
IP67/IP69K protection
High shock resistance
High vibration resistance
Excellent repeatability
Low linearity deviation
60 million pressure cycles
1 ms response
Hydraulic pressure monitoring
Industrial machinery
Machine tools
Pump systems
Hydraulic power units
Process equipment
Automation systems
Pressure control
| Specification | Details |
|---|---|
| Product | PT5400 |
| Model | PT-400-SEG14-A-ZVG/US//W |
| Measuring range | 0...400 bar |
| Equivalent range | 0...5800 psi / 0...40 MPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Medium temperature | -40...90 °C |
| Pressure rating | 1000 bar |
| Burst pressure | 2000 bar |
| Vacuum resistance | -1000 mbar |
| Repeatability | < ±0.05 % span |
| Characteristic deviation | < ±0.5 % span |
| Linearity | < ±0.1 BFSL / < ±0.2 LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response | 1 ms |
| Supply voltage | 8.5...36 V DC |
| Output | 4...20 mA |
| Outputs | 1 analogue |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Protection | IP67/IP69K |
| Electrical connector | M12 |
| Pressure cycles | 60 million |
