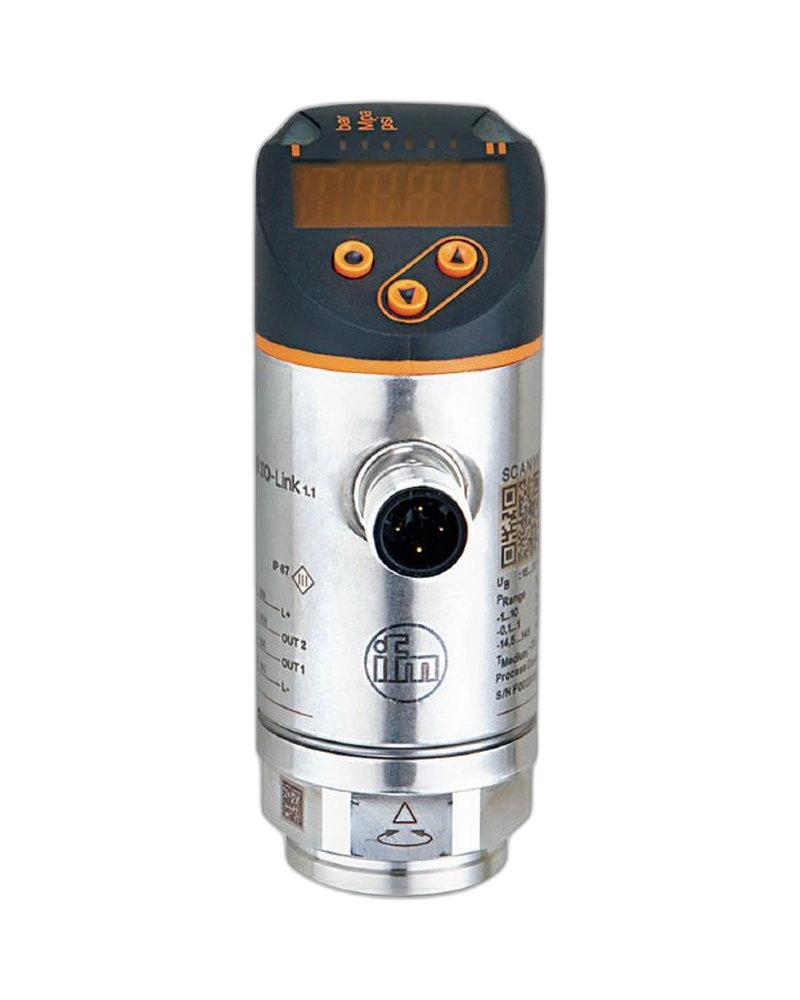

The IFM PN7296 is a compact electronic pressure sensor with display designed for low-pressure measurement from 0 to 2.5 bar. It uses a ceramic-capacitive measuring cell and provides two configurable switching outputs. IO-Link communication enables convenient parameterization, diagnostics and digital process-data access. The red/green display provides direct visual feedback of measured pressure and operating conditions. Its 1/4-inch NPT internal process connection makes it suitable for compatible pneumatic and low-pressure systems.
The PN7296 provides a 0 to 2.5 bar measuring range for low-pressure industrial applications. Its ceramic-capacitive sensing element supports measurement of liquid and gas media. The sensor provides configurable switching points for pressure-dependent machine functions. Repeatability is specified below ±0.1% of span under defined temperature conditions. The device also provides long-term stability of less than ±0.05% of span over six months.
The four-digit red/green display provides convenient local pressure indication. Two programmable digital outputs can be configured according to machine requirements. The outputs support normally open and normally closed operating modes. IO-Link provides additional parameter-setting and diagnostic capabilities. The display and switching functions allow operators to monitor pressure without additional instruments.
The PN7296 features a cylindrical housing approximately 34 mm in diameter and 90.7 mm long. Its wetted parts include stainless steel, ceramic and FKM materials. The process connection is a 1/4-inch NPT internal thread. The sensor provides high shock and vibration resistance for industrial applications. The M12 connector uses gold-plated contacts for reliable electrical connectivity.
The PN7296 is suitable for pneumatic pressure monitoring and low-pressure industrial systems. It can be used in machine tools, production equipment and pressure-control systems. The integrated display provides immediate pressure information at the installation point. IO-Link allows integration into intelligent automation networks. Its compact design makes it suitable for machinery where low-pressure monitoring and local indication are required.
0 to 2.5 bar measuring range
Ceramic-capacitive measuring cell
4-digit red/green display
Two digital outputs
IO-Link interface
PNP/NPN outputs
Configurable NO/NC operation
Repeatability below ±0.1%
Long-term stability below ±0.05%
1/4-inch NPT internal connection
M12 gold-plated connector
100 million pressure cycles
IP65/IP67 protection
Compact housing
High shock resistance
Pneumatic pressure monitoring
Low-pressure systems
Machine tools
Industrial automation
Compressed-air systems
Production machinery
Pressure control
Process monitoring
Pump systems
Manufacturing equipment
| Specification | Details |
|---|---|
| Product | PN7296 |
| Product Type | Pressure sensor with display |
| Model | PN-2,5-REN14-QFRKG/US/ /V |
| Measuring Range | 0...2.5 bar |
| Measuring Range | 0...250 kPa |
| Measuring Range | 0...36.2 psi |
| Pressure Type | Relative |
| Measuring Element | Ceramic-capacitive |
| Digital Outputs | 2 |
| Output Type | PNP/NPN |
| Output Function | NO/NC configurable |
| IO-Link | Yes |
| IO-Link Revision | 1.1 |
| Operating Voltage | 18...30 V DC |
| Current Consumption | <35 mA |
| Process Connection | 1/4" NPT internal |
| Electrical Connection | M12 |
| Display | 4-digit red/green |
| Medium | Liquids and gases |
| Medium Temperature | -25...80 °C |
| Ambient Temperature | -25...80 °C |
| Protection | IP65/IP67 |
| Pressure Cycles | 100 million |
| Housing Diameter | Ø34 mm |
| Housing Length | 90.7 mm |
