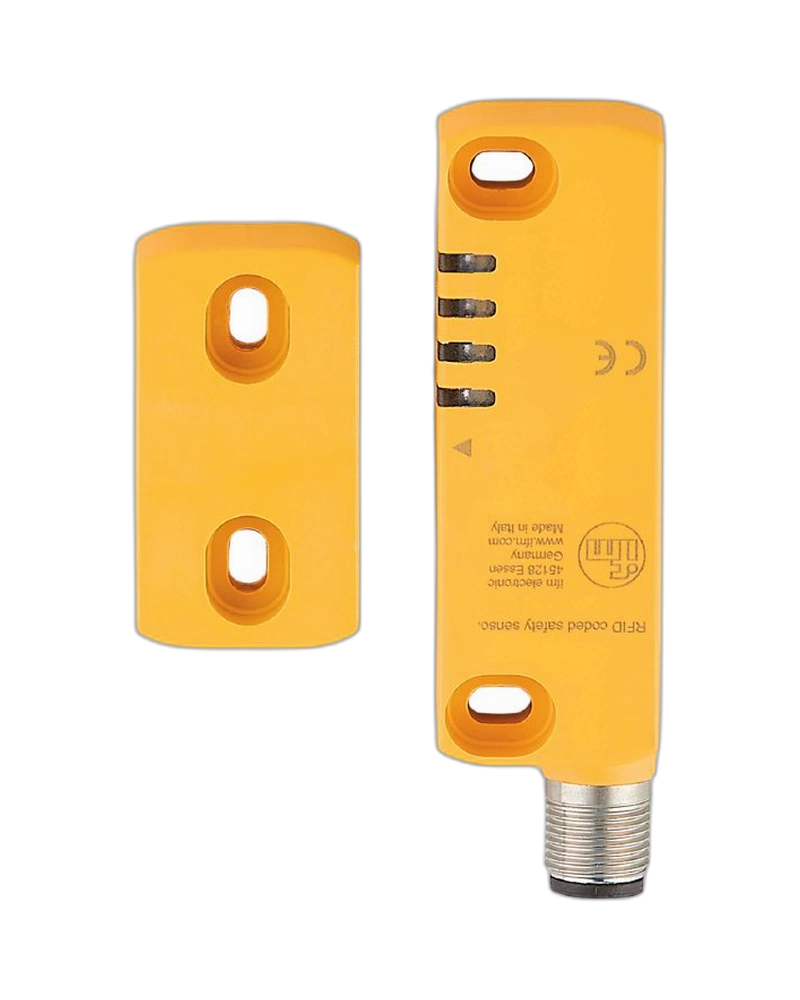

The IFM MN708S RFID-coded safety sensor is designed for dependable non-contact monitoring of industrial machine guards and safety access points. It combines coded RFID actuator recognition with safety-related outputs for integration into machine safety systems. The sensor is suitable for automated machinery, robotic cells, packaging equipment and production lines requiring reliable safety guard monitoring.
MN708S uses RFID-coded technology to detect and identify the associated safety actuator. This non-contact method supports repeated guard operation without mechanical switching wear. The sensor is designed for connection to suitable safety-related control systems. Its industrial construction makes it suitable for machine guarding applications.
The sensor provides two OSSD safety outputs and one signal output. IFM specifies a 12 mm sensing range with the defined actuator and a 16 mm maximum range for the family. It also supports Category 4 PL e and SIL 3 safety requirements. The sensor has IP65 and IP67 protection.
MN708S can monitor safety doors, protective machine guards, access covers and enclosed automation cells. It is suitable for applications where opening a guard needs to generate a safety response. Typical applications include packaging, robotics, production machinery and automated material handling. It can be integrated with appropriate safety controllers.
MN708S provides high-performance RFID-coded safety detection in a compact industrial design. Its OSSD safety outputs support integration with safety logic, while coded actuator recognition improves guard monitoring reliability. It is suitable for demanding machine-safety applications requiring dependable non-contact detection.
RFID-coded safety sensor
Non-contact operation
Two OSSD safety outputs
One PNP signal output
12 mm sensing range with defined actuator
16 mm maximum range
IP65/IP67 protection
Category 4 PL e
SIL 3
20-year mission time
Machine safety doors
Protective guards
Robotic cells
Packaging machinery
Production machines
Machine tools
Access covers
Automated systems
Safety enclosures
Factory automation
| Specification | Details |
|---|---|
| Product Code | MN708S |
| Model | MN38010-BPKG/L/CB/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Sensor Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 PNP |
| Sensing Range | 12 mm with defined actuator |
| Maximum Range | 16 mm |
| Safety Response Time | 160 ms |
| Start-up Delay | 1500 ms |
| Operating Frequency | 0.125 MHz |
| Protection Rating | IP65; IP67 |
| Ambient Temperature | -25...70 °C |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity | SIL 3 |
| Mission Time | Up to 20 years |
| Housing | Rectangular |
| Mounting | Non-flush |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
| EMC | IEC 60947-5-3 |
| Application | Machine safety |
| Product Family | MN700S |
