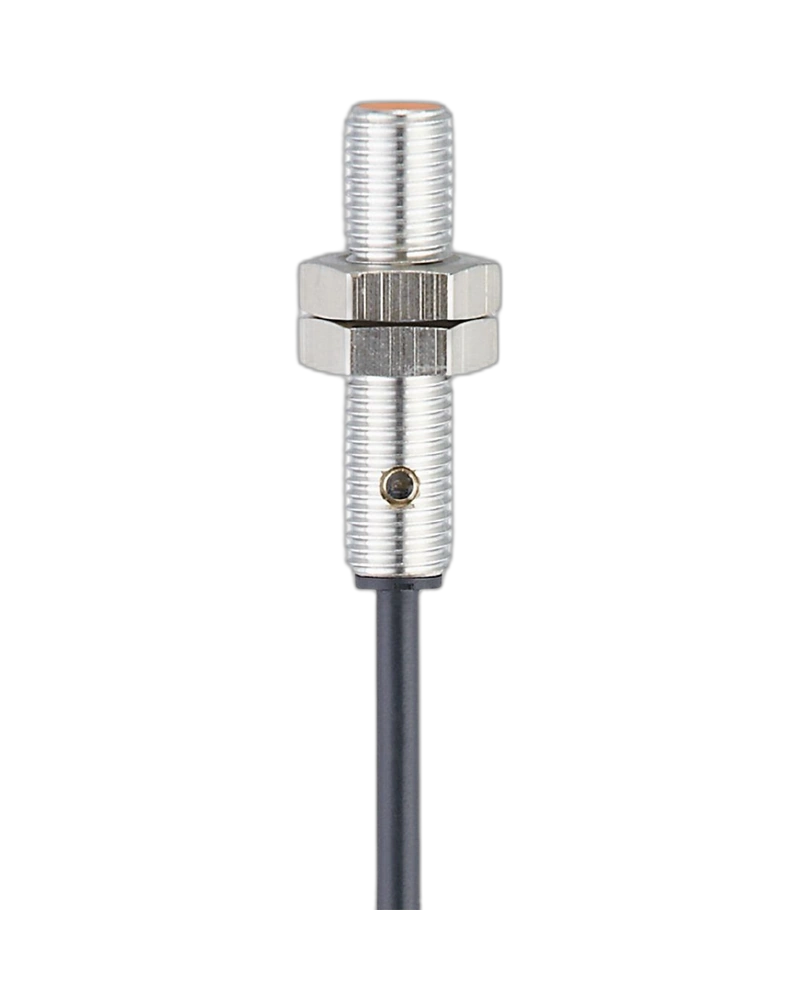

The IE5330 Inductive Sensor is a compact proximity sensor designed for reliable metal detection in industrial automation. Its particularly short housing, space-saving design, and high switching frequency make it suitable for restricted installation areas.
The IE5330 provides reliable non-contact metal detection for Industrial Automation UAE applications. Its short housing is especially suitable for machines with limited installation space.
The compact M8 housing and space-saving connection technology allow easy integration into machinery, conveyors, and factory automation systems.
The sensor provides a 1 mm sensing range, high switching frequency, and IP67 protection for dependable industrial operation.
1 mm sensing range
NPN normally open output
Particularly short housing
M8 threaded design
3-meter PVC cable
High switching frequency
IP67 protection
Space-saving connection
Robust metal housing
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5330 |
| Part Number | IEB3001-ANKG/3M |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 35 mm |
| Electrical Design | NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | 200 mA |
| Cable Length | 3 m |
| Cable Type | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
