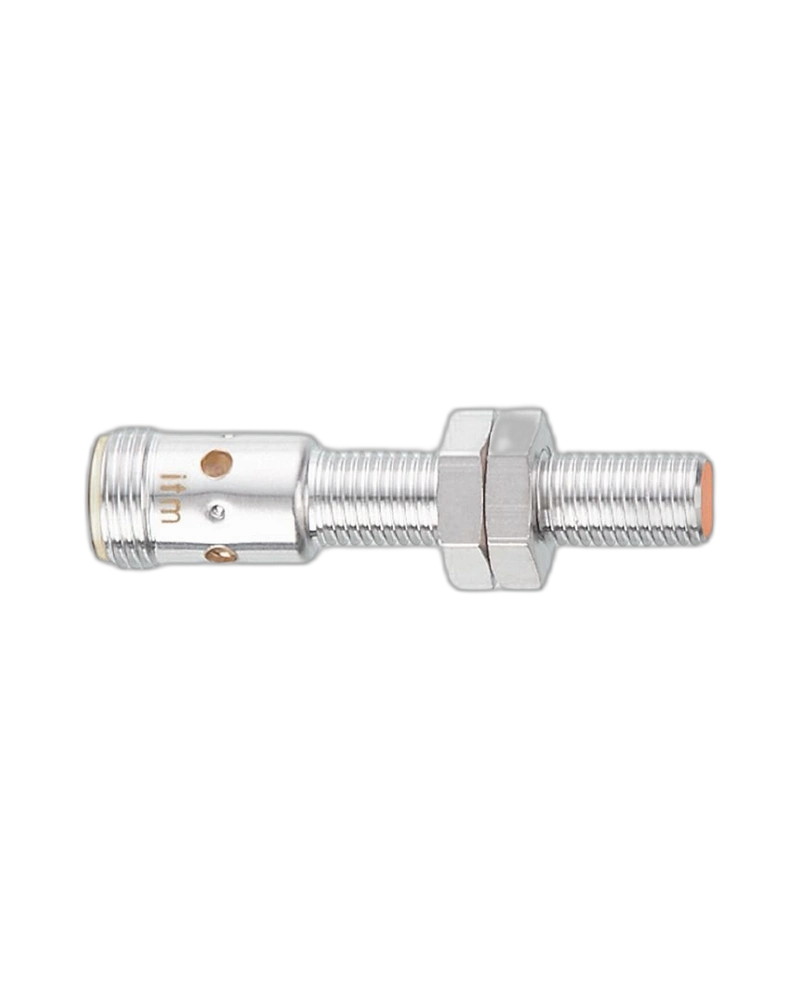

The IE5327 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machinery, and factory equipment. Its increased sensing range and compact M8 housing support accurate detection in space-restricted applications.
The IE5327 is designed for reliable metal object detection in Industrial Automation UAE applications. It helps improve machine positioning and automated production processes.
The M8 threaded housing provides a compact solution for machinery and equipment where installation space is restricted.
The sensor offers an increased 2 mm sensing range, 800 Hz switching frequency, and IP67 protection for dependable industrial operation.
2 mm sensing range
PNP normally closed output
Increased sensing range
M8 threaded design
60 mm housing length
800 Hz switching frequency
IP67 protection
Short-circuit protection
Overload protection
Reliable position detection
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5327 |
| Part Number | IEK3002BAPKG/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Protection Class | III |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Application | Industrial Automation |
