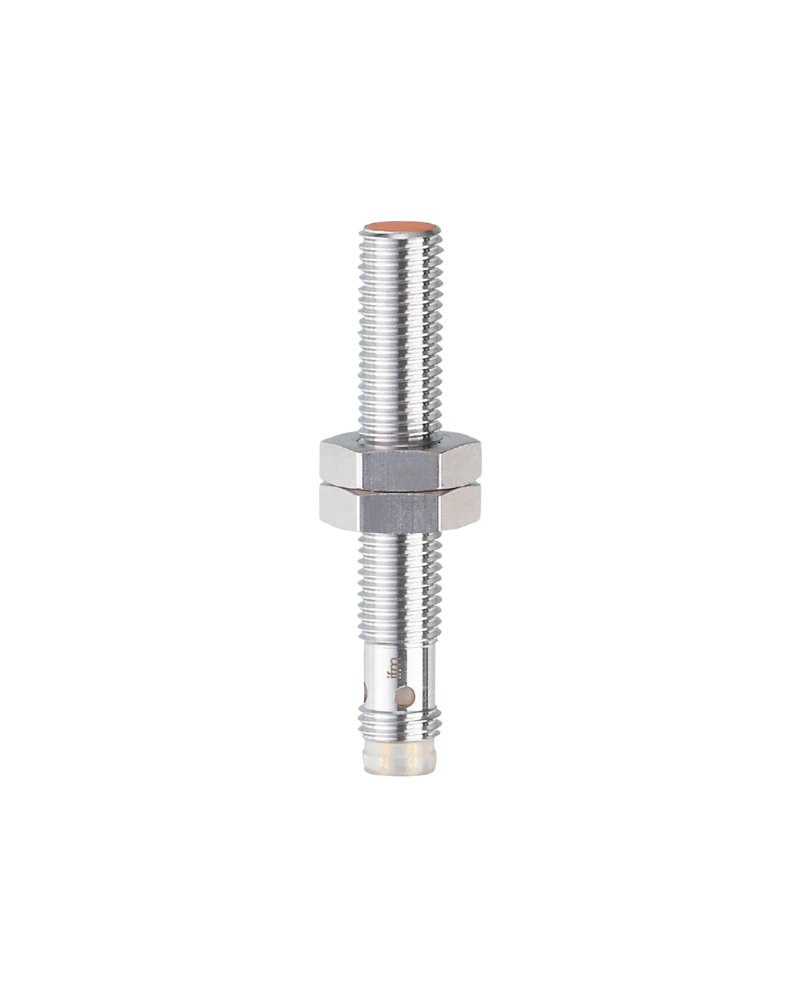

The IE5292 Inductive Sensor provides reliable 2.5 mm metal detection for industrial automation and machine monitoring. Its stainless-steel construction, compact M8 design, and robust performance make it suitable for demanding industrial environments.
The IE5292 is designed for reliable non-contact metal detection in Industrial Automation Systems in UAE. It helps automated equipment detect metal components accurately during production processes.
Its V4A stainless-steel housing provides durability for demanding industrial applications. The compact M8 design supports installation in machinery and limited spaces.
The sensor provides a 1200 Hz switching frequency and IP65/IP67 protection, making it suitable for Industrial Sensors Supplier UAE applications and factory automation systems.
2.5 mm sensing range
DC PNP output
Normally open output
Compact M8 design
Non-flush mounting
V4A stainless-steel housing
1200 Hz switching frequency
IP65 / IP67 protection
M8 connector
Reliable industrial operation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Industrial production equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5292 |
| Part Number | IEB32.5-BPKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2.5 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | DC PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Switching Current | 200 mA |
| Connection | M8 Connector |
| Protection Rating | IP65 / IP67 |
| Housing Material | Stainless Steel 316L |
| Ambient Temperature | 0 to +80 °C |
| Application | Industrial Automation |
