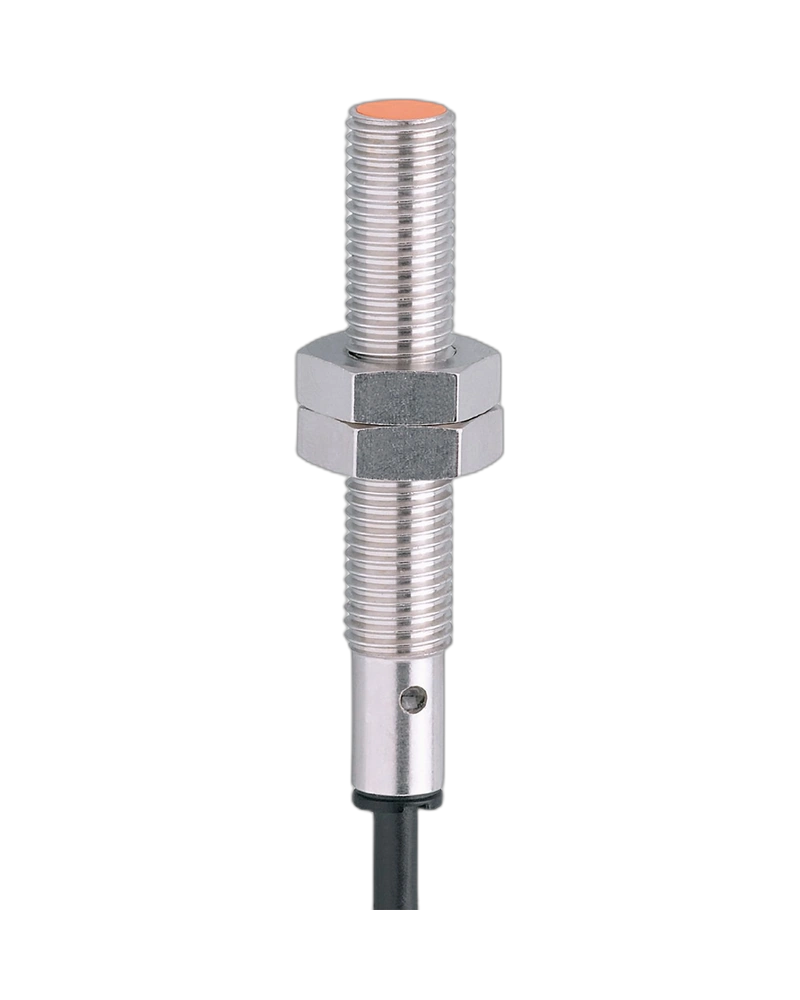

The IE5238 Inductive Sensor provides reliable 2 mm metal detection for industrial automation, machine tools, and factory equipment. Its selectable PNP/NPN output and compact M8 construction support flexible integration into automated systems.
The IE5238 is designed for dependable non-contact metal detection in Industrial Automation Solutions in UAE. It helps machines identify the presence and position of metal components during automated processes.
The sensor supports selectable PNP/NPN and normally open/normally closed output functions, making it suitable for different control-system requirements.
Its robust metal housing and IP67 protection make the sensor suitable for Industrial Automation Equipment UAE, conveyors, machine tools, assembly systems, and production equipment.
2 mm sensing range
Selectable PNP/NPN output
Selectable NO/NC output
Compact M8 design
High switching frequency
Robust metal housing
IP67 protection
Reliable machine detection
Easy control-system integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5238 |
| Part Number | IEA2002-FRKG/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC Selectable |
| Operating Voltage | 5–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | 2 m Cable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
