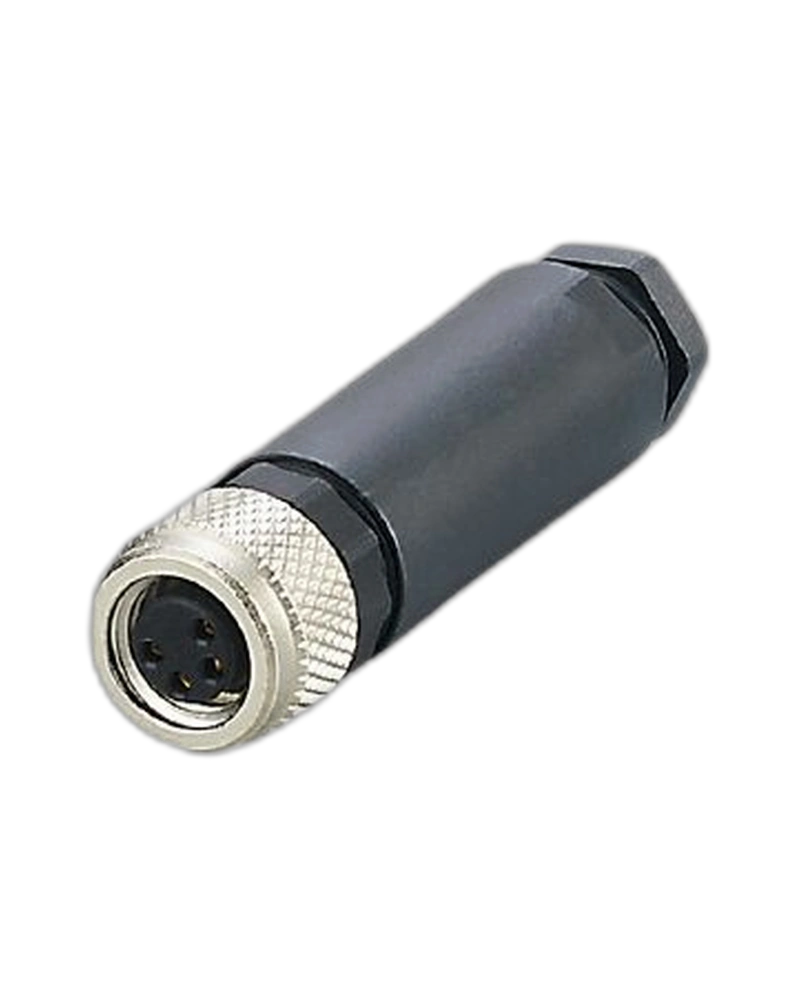

The IFM E12464 is a wirable socket designed for secure industrial electrical connections. It provides gold-plated contacts, PNP electrical design and IP67 protection for demanding automation environments. With an M8 straight A-coded connector, screw terminals and a wide -40 to 85 °C ambient temperature range, it is suitable for sensor wiring, machine automation and industrial control applications.
The E12464 provides a flexible field-wiring solution for compatible industrial sensors and automation devices. Its wirable construction allows cables to be terminated directly at the socket using screw terminals. The M8 connector format provides a compact and practical connection solution for machine installations.
The socket supports operating voltages below 30 V AC/DC and uses a PNP electrical design. Gold-plated contacts provide reliable electrical connection. The screw-terminal arrangement supports cable conductors from 0.14 to 0.5 mm², providing flexibility for industrial wiring requirements.
The E12464 is designed for harsh industrial environments and provides IP67 protection. Its operating temperature range extends from -40 to 85 °C. The PBT/PA body and nickel-plated brass nut provide a robust construction suitable for industrial sensor connection applications.
The wirable socket simplifies cable termination and maintenance while supporting reliable sensor connections. Its compact M8 construction is useful in space-constrained machine environments. The wide temperature range and IP67 protection make it suitable for demanding industrial automation installations.
M8 straight connector
A-coded connection
Gold-plated contacts
PNP electrical design
IP67 protection
-40...85 °C operating range
Screw terminals
PBT/PA body
Nickel-plated brass nut
Compact industrial design
Industrial sensor wiring
Factory automation
Machine control
Field wiring
Sensor interfaces
Industrial instrumentation
Production machinery
Automation systems
Control panels
Machine maintenance
| Specification | Details |
|---|---|
| Product code | E12464 |
| Product type | Wirable socket |
| Model | SDOGF040MSSFKPG |
| Brand | IFM |
| Special feature | Gold-plated contacts |
| Operating voltage | <30 V AC/DC |
| Electrical design | PNP |
| Ambient temperature | -40...85 °C |
| Protection | IP67 |
| Weight | 11.2 g |
| Dimensions | 12 x 12 x 45 mm |
| Moulded-body material | PBT / PA |
| Nut material | Brass, nickel-plated |
| Pack quantity | 1 pcs. |
| Screw terminal range | 0.14...0.5 mm² |
| Cable sheath diameter | 3.5...5 mm |
| Connector | 1 x M8 |
| Orientation | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Locking | Brass, nickel-plated |
| Connection method | Screw terminals |
| Application | Industrial automation |
| Product category | Sensor accessories |
| Installation | Field wiring |
