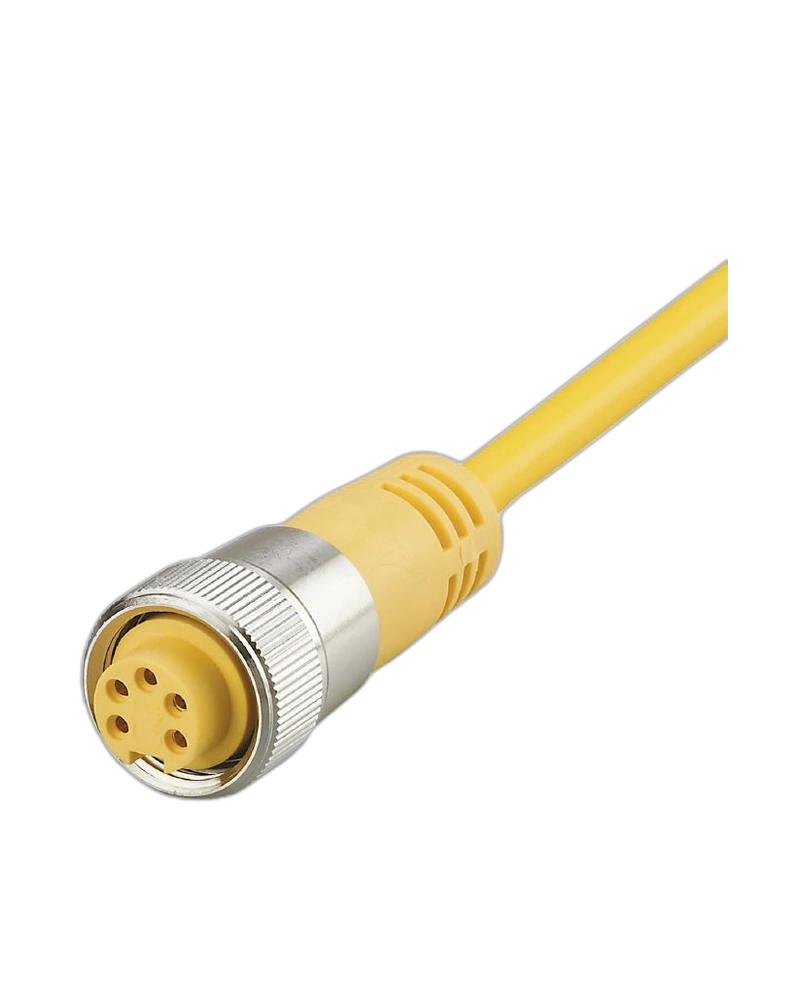

The IFM E11246 is a connecting cable with a 7/8-inch socket designed for industrial equipment connections. It uses a 5 m PVC cable with five 0.75 mm² conductors. The assembly supports operating voltage below 250 V AC and a maximum total current load of 5 A. IP68 protection and a -40 to +90 °C ambient range support demanding industrial environments. Its straight connector and TPU construction provide a robust connection solution.
The E11246 uses a 5 m PVC cable with five 0.75 mm² conductors. The cable provides extended connection distance for industrial equipment. The straight 7/8-inch connector provides a defined interface. TPU is used for the moulded body and locking components. The cable assembly is designed for practical industrial installation.
The cable supports operating voltage below 250 V AC. Its maximum total current load is 5 A. The five-core construction provides multiple conductors for compatible equipment. IP68 protection supports demanding environmental conditions. The broad -40 to +90 °C ambient range supports many industrial applications.
The connector uses a straight arrangement for conventional cable routing. The TPU body and locking material provide a robust polymer construction. The assembly weighs approximately 498.2 g. Its 5 m cable length provides useful reach between equipment. The connector should be properly secured before operation.
7/8-inch socket
5 m cable
PVC cable
5 × 0.75 mm² conductors
Below 250 V AC
5 A maximum current load
IP68 protection
-40 to +90 °C ambient range
Straight connector
TPU moulded body
TPU locking
Approx. 498.2 g weight
Industrial cable assembly
Pre-assembled connection
Robust construction
Industrial automation
Machine wiring
Industrial control
Process equipment
Automation cabinets
Production machinery
Sensor/actuator connections
Factory equipment
The E11246 provides a long 5 m connection for compatible industrial equipment. Its 0.75 mm² conductors support higher current applications within the specified rating. IP68 protection supports demanding industrial environments. The TPU connector construction provides practical mechanical durability. The pre-assembled cable reduces field termination work.
Route the cable away from moving components. Avoid excessive bending at the connector. Ensure the 7/8-inch connection is correctly engaged. Inspect the PVC sheath during maintenance. Replace damaged cable assemblies before use.
| Specification | E11246 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11246 |
| Product type | Connecting cable with socket |
| Product code | ADOGB050PLS0005E05 |
| Connector | 7/8 inch |
| Connector design | Straight |
| Cable length | 5 m |
| Cable material | PVC |
| Conductors | 5 |
| Conductor size | 0.75 mm² |
| Operating voltage | <250 V AC |
| Current load | 5 A |
| Protection | IP68 |
| Ambient temperature | -40 to +90 °C |
| Body material | TPU |
| Locking material | TPU |
| Dimensions | 24 × 24 × 50 mm |
| Weight | 498.2 g |
| Coding | A |
| Application | Industrial automation |
| Product family | Connection cables |
| Mechanical function | Equipment connection |
| Electrical function | Power/signal connection |
| Installation | Plug connection |
| Cable construction | Multi-core |
| Cable type | PVC |
| Connector interface | 7/8 inch |
| Pack quantity | 1 |
| Industrial use | Factory automation |
