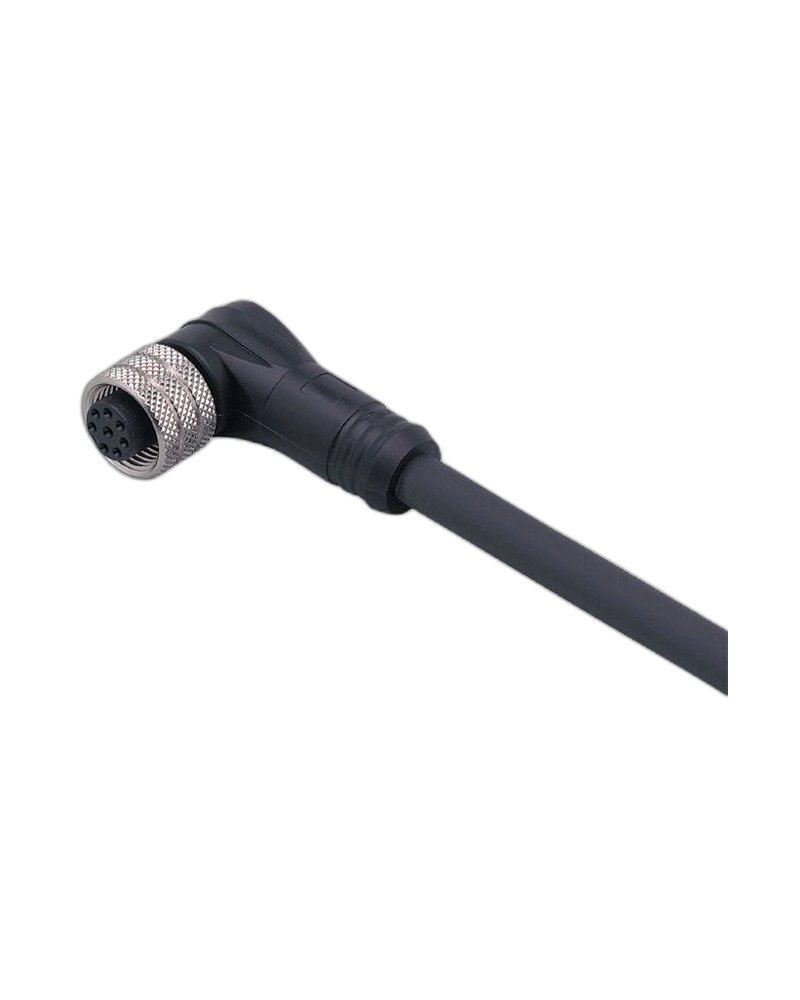

The IFM E11231 is an angled 8-pole M12 connecting cable with socket designed for industrial sensor connections. It uses a 2 m halogen-free PUR cable with gold-plated contacts. The cable supports below 30 V AC / 36 V DC and a 2 A current rating. IP67 protection supports industrial automation environments. Its angled connector design provides practical cable routing in compact machine installations.
The E11231 uses a 2 m black PUR cable with eight 0.25 mm² conductors. Its angled M12 socket provides improved routing flexibility. The PUR moulded body supports mechanical durability around the connector. The nickel-plated brass nut provides secure locking. The cable is free from silicone and halogen.
The cable supports below 30 V AC / 36 V DC operation. It has a 2 A maximum total current load under the specified conditions. Gold-plated contacts support reliable electrical connection. IP67 protection provides suitable environmental resistance. The cable is designed for compatible 8-pole sensor systems.
The 2 m length provides greater reach than the 1 m version. The angled connector helps avoid unnecessary bending around machine structures. The pre-assembled cable reduces field termination requirements. Correct wiring is important for 8-pole sensor connections. The cable should be routed and supported appropriately.
8-pole M12 socket
2 m cable
Angled connector
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Below 30 V AC
Below 36 V DC
2 A current rating
IP67 protection
8 × 0.25 mm² conductors
Ø6.2 mm cable
Nickel-plated brass nut
Industrial sensor cable
8-pole sensors
Machine automation
Factory automation
Sensor networks
Industrial control
Process equipment
Automation panels
Machine monitoring
The E11231 combines extended 2 m reach with a compact angled connector. Its PUR cable provides a practical industrial wiring solution. Gold-plated contacts support reliable connection performance. IP67 protection provides suitable environmental protection. The pre-assembled construction reduces cable termination work.
Verify the 8-pole wiring before connection. Align the M12 socket carefully. Secure the locking nut correctly. Avoid cable stress near the connector. Inspect the cable sheath during maintenance.
| Specification | E11231 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11231 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0002H08 |
| Connector | M12 |
| Pole count | 8 |
| Connector design | Angled |
| Coding | A |
| Cable length | 2 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.2 mm |
| Contact finish | Gold plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <30 V AC / <36 V DC |
| Current rating | 2 A |
| Protection class | III |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connecting cables |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
