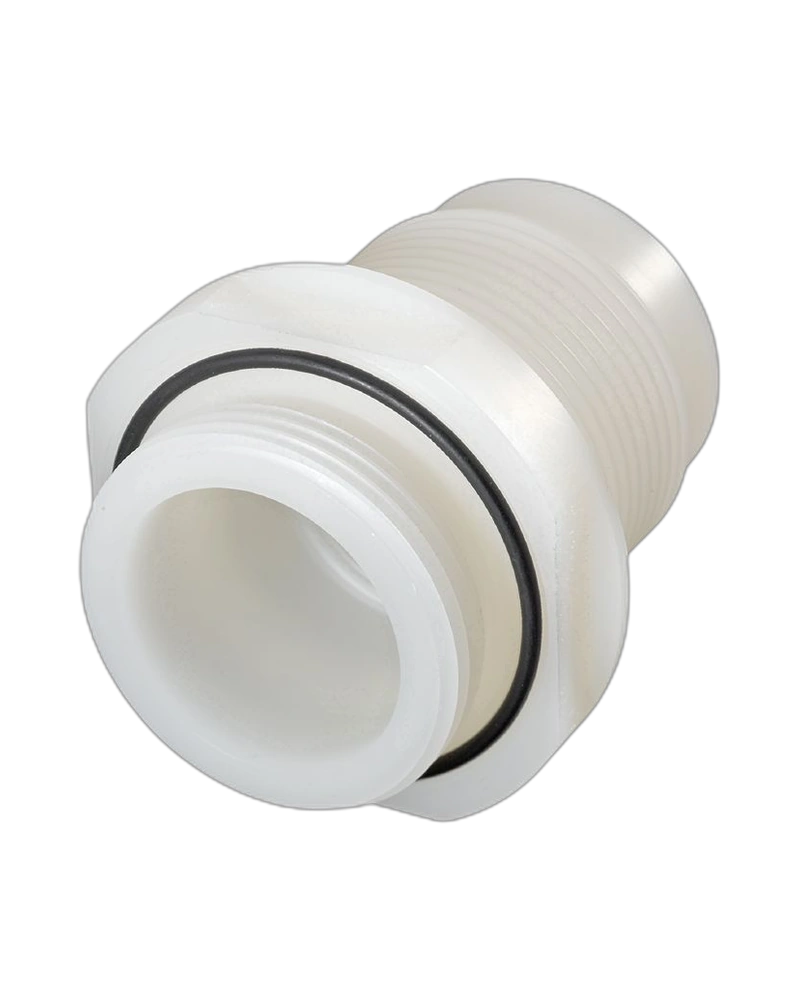

The IFM E11036 is a PVDF mounting adapter for M30 × 1.5 capacitive sensors. It uses a G 1¼ external process connection for compatible tank and vessel installations. The adapter has an 8 bar pressure rating and an ambient temperature range of -25 to +110 °C. It uses EPDM sealing and has a 65 mm installation length. The model provides a practical high-temperature polymer mounting solution for capacitive level sensing.
The E11036 uses PVDF for the adapter body and EPDM for the gasket. An M30 × 1.5 internal thread provides the sensor connection. The G 1¼ external thread provides the process connection. The 65 mm length supports installation through appropriate vessel walls. Its compact construction allows efficient sensor integration.
The adapter is rated to 8 bar pressure. The ambient operating temperature range is -25 to +110 °C. Its weight is approximately 83.4 g. PVDF provides a lightweight polymer construction suitable for appropriate industrial environments. The EPDM gasket supports sealing at the mounting interface.
Connect the sensor using the M30 × 1.5 internal thread. Install the process side using the G 1¼ external thread. Check the O-ring before installation. Avoid excessive tightening of the polymer adapter. Inspect the adapter and seal during scheduled maintenance.
PVDF mounting adapter
M30 × 1.5 internal thread
G 1¼ external process thread
EPDM gasket
44 × 2 mm O-ring
8 bar pressure rating
-25 to +110 °C ambient range
65 mm length
83.4 g weight
Capacitive sensor mounting
Tank installation
Vessel-wall installation
High-temperature capability
Compact design
Single-piece pack
Capacitive level detection
Industrial tanks
Process vessels
Liquid level monitoring
Material level monitoring
Process automation
Industrial containers
Sensor mounting
The E11036 provides a PVDF mounting solution for compatible M30 capacitive sensors. Its G 1¼ process interface supports practical process integration. The 8 bar pressure rating provides suitable capability for compatible installations. Its high ambient temperature range makes it useful in appropriate higher-temperature environments. The compact 65 mm construction supports efficient sensor mounting.
Inspect the O-ring before assembly. Clean the process and sensor threads. Avoid excessive tightening force. Check for leakage after commissioning. Inspect the adapter body and sealing area during maintenance.
| Specification | E11036 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11036 |
| Product type | Mounting adapter |
| Product name | MOUNTING ADAPTER M30 PVDF |
| Sensor connection | M30 × 1.5 |
| Sensor thread | Internal |
| Process connection | G 1¼ |
| Process thread | External |
| Adapter material | PVDF |
| Gasket material | EPDM |
| O-ring | 44 × 2 mm |
| Pressure rating | 8 bar |
| Pressure rating | 0.8 MPa |
| Ambient temperature | -25 to +110 °C |
| Length | 65 mm |
| Weight | 83.4 g |
| Thread designation | G 1¼ |
| Application | Capacitive sensors |
| Installation | Vessel wall |
| Process application | Level detection |
| Sensor interface | M30 × 1.5 |
| Process interface | G 1¼ |
| Mechanical function | Sensor mounting |
| Sealing element | EPDM |
| Housing material | PVDF |
| Pack quantity | 1 |
| Product family | Capacitive sensor accessories |
| Industrial application | Process automation |
| Construction | Polymer adapter |
