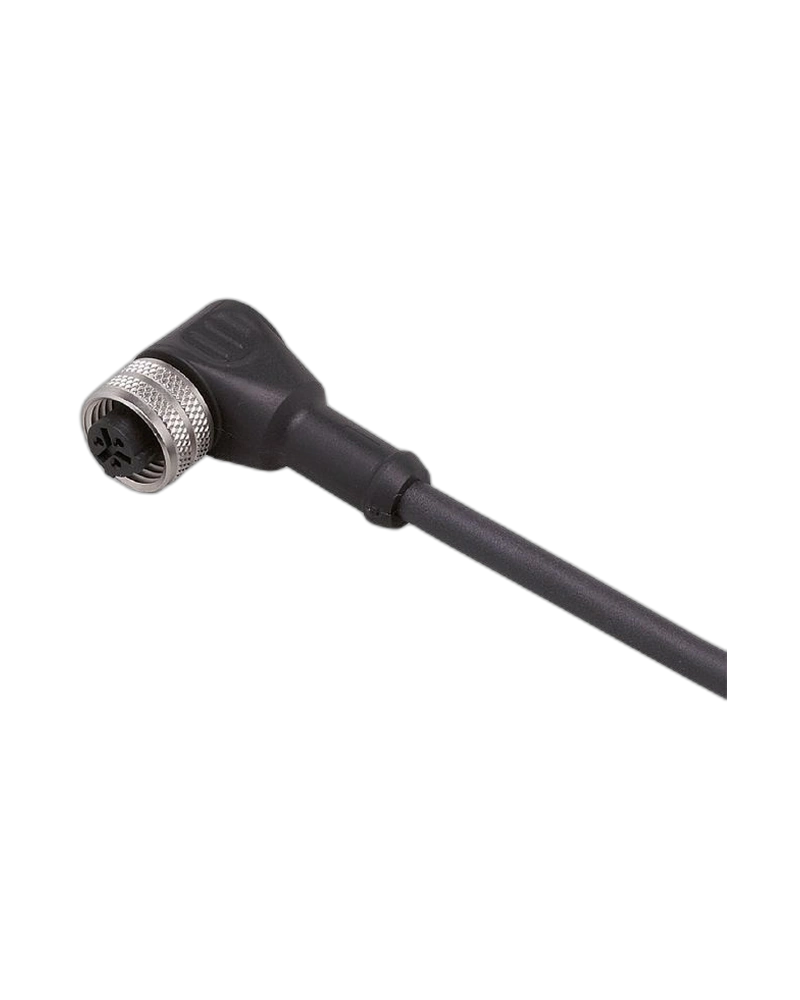

The IFM E10210 is a 5 m connecting cable with an angled socket for sensors using a 1/2-inch connector. It uses a black halogen-free PUR cable containing three 0.5 mm² conductors. The cable has an approximately 5.2 mm diameter and provides a durable flexible connection. It supports 250 V AC and 300 V DC with IP67 protection. The angled socket and black PUR construction make it suitable for industrial automation and moving-machine applications.
The E10210 uses a 5 m black PUR cable. Three 0.5 mm² conductors provide the electrical connection. The cable has approximately 64 × 0.1 mm conductor construction and a 5.2 mm outside diameter. The angled socket uses a 1/2-inch interface. The TPU body and nickel-plated brass locking nut provide secure connection.
The cable supports 250 V AC and 300 V DC. IP67 protection provides protection against dust and water ingress. The operating temperature range is -25…90 °C. The cable is halogen-free. The design is suitable for industrial automation applications.
The cable is suitable for drag-chain applications. A minimum bending radius of 10 times the cable diameter is specified. Maximum travel speed is approximately 3.3 m/s under specified conditions. The cable supports more than two million bending cycles. Torsional strain capability is ±180°/m.
E10210
ADOAA030MSS0005H03
5 m cable
1/2-inch sensor connector
Angled socket
Black PUR cable
Halogen-free
3 × 0.5 mm²
64 × Ø0.1 mm conductor construction
Ø5.2 mm
TPU body
Nickel-plated brass nut
250 V AC
300 V DC
IP67
-25…90 °C
Drag-chain suitable
2 million bending cycles
Industrial automation
Drag-chain systems
Machine wiring
Sensor connections
Factory automation
Packaging equipment
Production machinery
Control systems
Mobile equipment
Distributed sensors
PUR construction provides flexible cable routing. The 5 m length provides extended installation reach. The angled connector helps with restricted cable space. Halogen-free construction supports modern industrial wiring requirements. Drag-chain suitability supports repeated movement.
Maintain the specified bending radius. Route the cable correctly inside a cable carrier. Avoid excessive torsional stress. Inspect the PUR jacket regularly. Tighten the connector locking nut correctly.
| Specification | E10210 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10210 |
| Model | ADOAA030MSS0005H03 |
| Cable length | 5 m |
| Sensor connector | 1/2 inch |
| Socket design | Angled |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Strand construction | 64 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Body material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Temperature | -25…90 °C |
| Bending radius | ≥10 × diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel | 5 m |
| Maximum acceleration | 5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Cable-chain use | Yes |
| Pack quantity | 1 |
