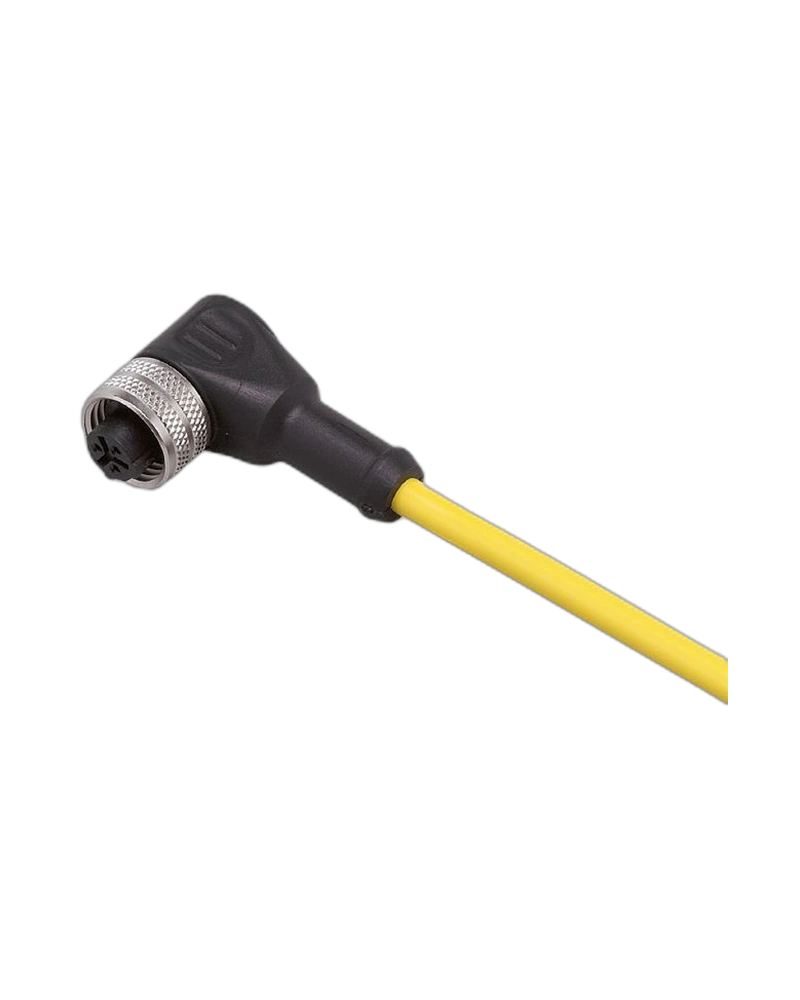

The IFM E10200 is a 5 m connecting cable with an angled socket for sensors using a 1/2-inch connector. It uses a yellow PVC cable containing three AWG22 conductors. The cable has an approximately 5.2 mm diameter and is designed for industrial drag-chain applications. It supports 250 V AC and 300 V DC with IP67 protection. The longer 5 m length provides extended routing capability for industrial machines.
The angled socket helps route the cable away from restricted sensor mounting areas. The connector uses a 1/2-inch interface. The cable contains three AWG22 conductors with approximately 42 × 0.1 mm strand construction. The yellow PVC jacket provides conventional industrial cable insulation. A nickel-plated brass nut provides secure mechanical connection.
The cable supports 250 V AC and 300 V DC. IP67 protection supports industrial environmental exposure. The cable operates from -25 to 90 °C. The three-wire construction provides the specified electrical interface. The 5 m length supports distributed sensor installations.
The cable is suitable for drag-chain applications. The minimum bending radius is 10 times cable diameter. Maximum travel speed is approximately 3.3 m/s under the specified conditions. The construction supports more than two million bending cycles. Torsional strain is specified at ±180°/m.
E10200
ADOAA030MSS0005E03
5 m cable
1/2-inch connector
Angled socket
Yellow PVC cable
3 × AWG22
42 × Ø0.1 mm
Ø5.2 mm cable
TPU body
Brass nickel-plated nut
250 V AC
300 V DC
IP67
-25…90 °C
Drag-chain suitable
2 million bending cycles
3.3 m/s travel speed
Industrial sensor wiring
Drag-chain applications
Factory automation
Machine control
Production machinery
Packaging equipment
Diagnostic systems
Control equipment
Distributed sensors
Industrial automation
The 5 m length provides extended routing. The angled connector improves cable management. Drag-chain suitability supports repeated movement. IP67 protection provides environmental protection. The cable is suitable for demanding machine wiring.
Maintain the minimum bending radius. Use proper cable-chain routing for moving applications. Avoid sharp bends and excessive torsion. Inspect the cable after repeated movement. Tighten the socket connection correctly.
| Specification | E10200 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10200 |
| Model | ADOAA030MSS0005E03 |
| Cable length | 5 m |
| Sensor connector | 1/2 inch |
| Socket design | Angled |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Strand construction | 42 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Body material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Temperature | -25…90 °C |
| Bending radius | ≥10 × cable diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel | 5 m |
| Acceleration | ≤5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Drag-chain use | Yes |
| Pack quantity | 1 |
| Primary application | Industrial automation |
| Connector interface | 1/2 inch |
