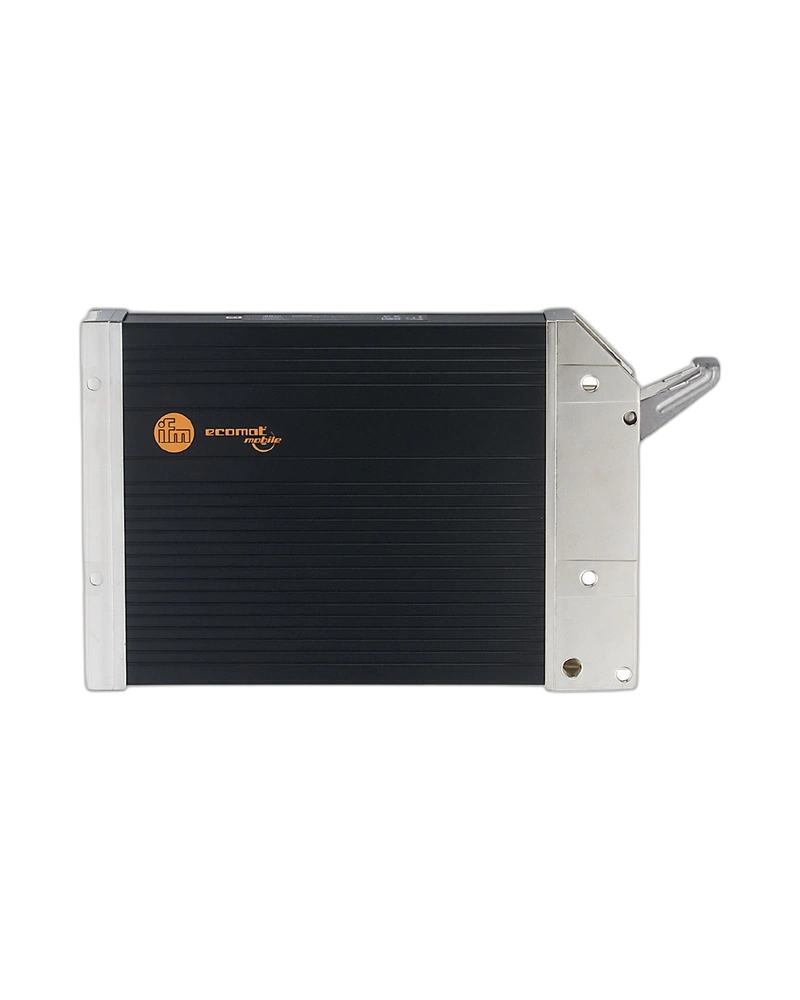

CR0032 is an IFM R360 ClassicController designed as a powerful 32-bit programmable controller for mobile machines. It provides 32 total inputs and outputs, including digital, analogue and frequency inputs and configurable digital, PWM and H-bridge outputs. The controller uses a robust IP67 metal housing and provides CAN, USB and RS-232 interfaces for mobile automation systems.
CR0032 is a 32-bit ClassicController developed by IFM for demanding mobile-machine automation applications. Its robust construction and configurable I/O architecture make it suitable for controlling machine functions in mobile equipment, agricultural machinery, construction equipment and other automated vehicles.
The controller provides 32 total I/O and includes 16 digital, 16 analogue and 16 frequency input functions. Its output section provides 16 digital, 16 PWM-I, 16 PWM and two H-bridge functions, giving engineers flexibility when controlling actuators and other machine components.
CR0032 provides multiple communication interfaces for integration into mobile-machine systems. The controller includes four CAN interfaces together with USB and RS-232 interfaces. These communication options allow connection to sensors, control modules, diagnostic equipment and other machine components.
The robust IP67 housing makes the controller suitable for harsh mobile-machine environments. Its configurable I/O functions and multiple interfaces provide a flexible control platform for complex machine functions. The controller supports IEC 61131-3-based programming within compatible IFM engineering environments.
32-bit programmable controller
R360 ClassicController platform
32 total inputs and outputs
16 digital inputs
16 analogue inputs
16 frequency inputs
16 digital outputs
16 PWM-I outputs
16 PWM outputs
2 H-bridge outputs
4 CAN interfaces
USB interface
RS-232 interface
IP67 protection
Mobile machinery
Construction equipment
Agricultural machinery
Material-handling machines
Special-purpose vehicles
Machine automation
Vehicle control systems
Hydraulic-function control
Mobile equipment automation
Industrial mobile systems
| Specification | Details |
|---|---|
| Product code | CR0032 |
| Product family | R360 ClassicController |
| Controller type | 32-bit programmable controller |
| Total I/O | 32 |
| Digital inputs | 16 |
| Analogue inputs | 16 x U/I |
| Frequency inputs | 16 |
| Digital outputs | 16 |
| PWM-I outputs | 16 |
| PWM outputs | 16 |
| H-bridge | 2 |
| CAN interfaces | 4 |
| USB | 1 |
| RS-232 | 1 |
| Housing protection | IP67 |
| Housing | Robust metal housing |
